Additional information
| Weight | N/A |
|---|---|
| VERSION | 80mm Quick release, 140mm Thumb screw, 140mm Quick release |
Save up to £10.00!

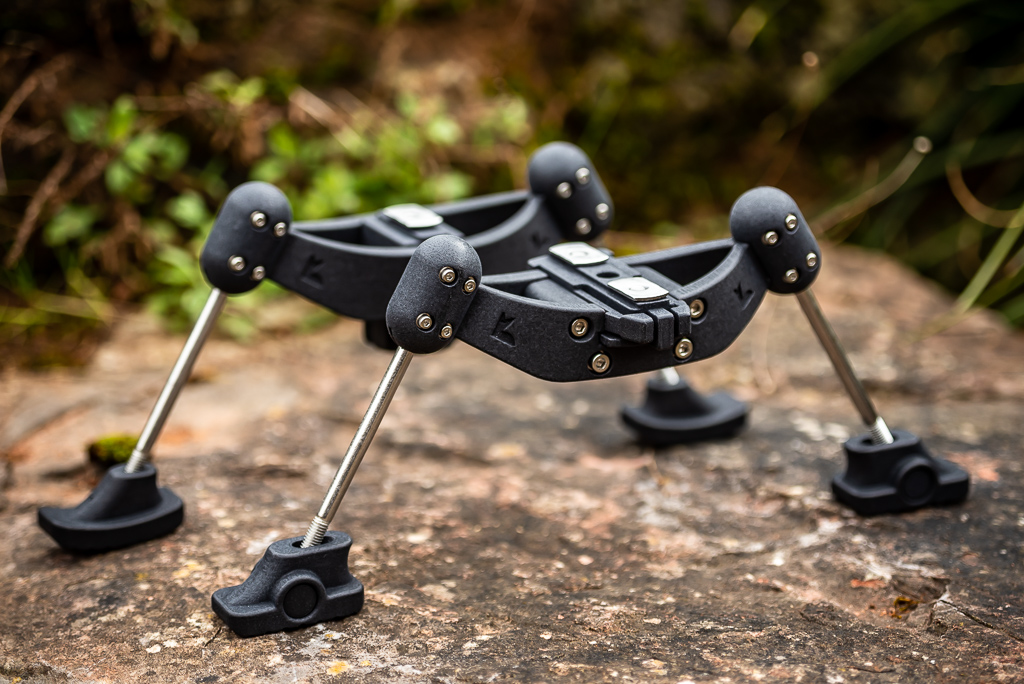

Atlas Extra Wide FT Bipod
Price range: £64.90 through £79.90

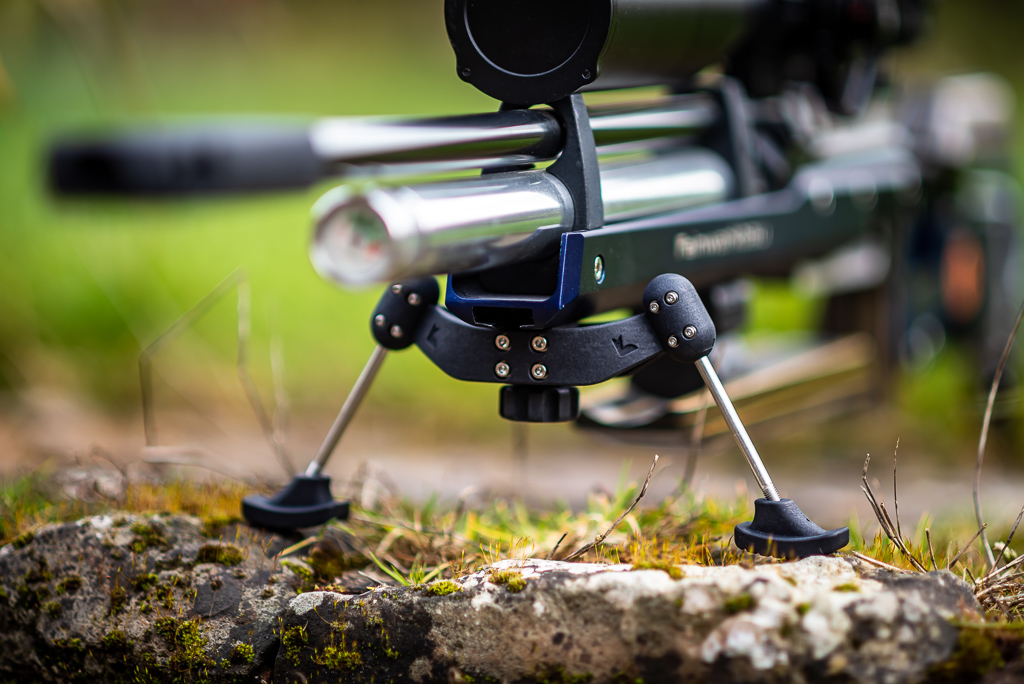

Extra wide bipod for FT rifles. This is not a sniper bipod, its only purpose is to give support between the lanes. FT rifles with their heavy and elevated scopes have a high centre of gravity and need a massive support. The 100mm long legs are wide apart (ball feet 220mm, boot-shaped feet 240mm) so it’s quite hard to knock over the rifle. Update: longer leg versions are available on backorder.
Clearing below the stock is about 80mm. Future versions with longer legs will be available

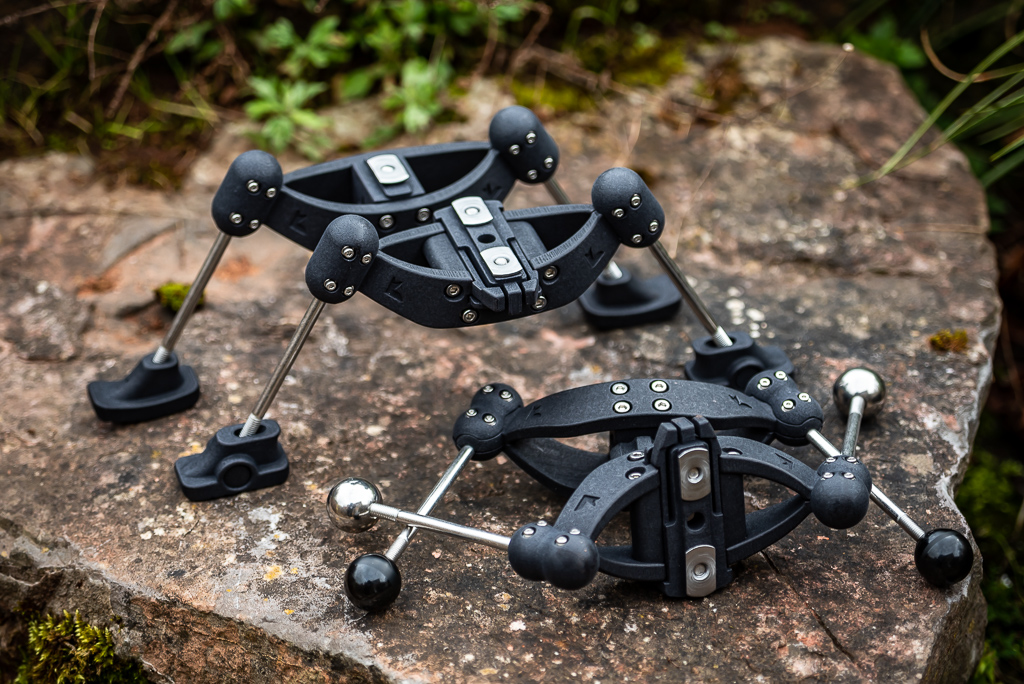

There are two main variations:
- Thumb screw: Connects to all UIT accessory rails with a T-nut and a thumb screw

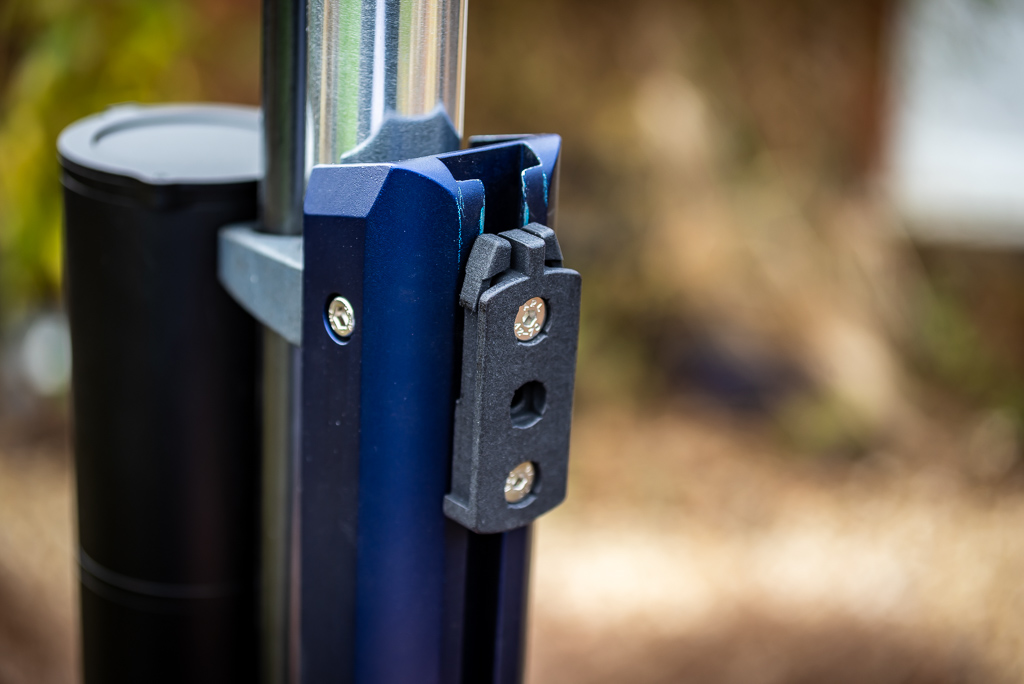

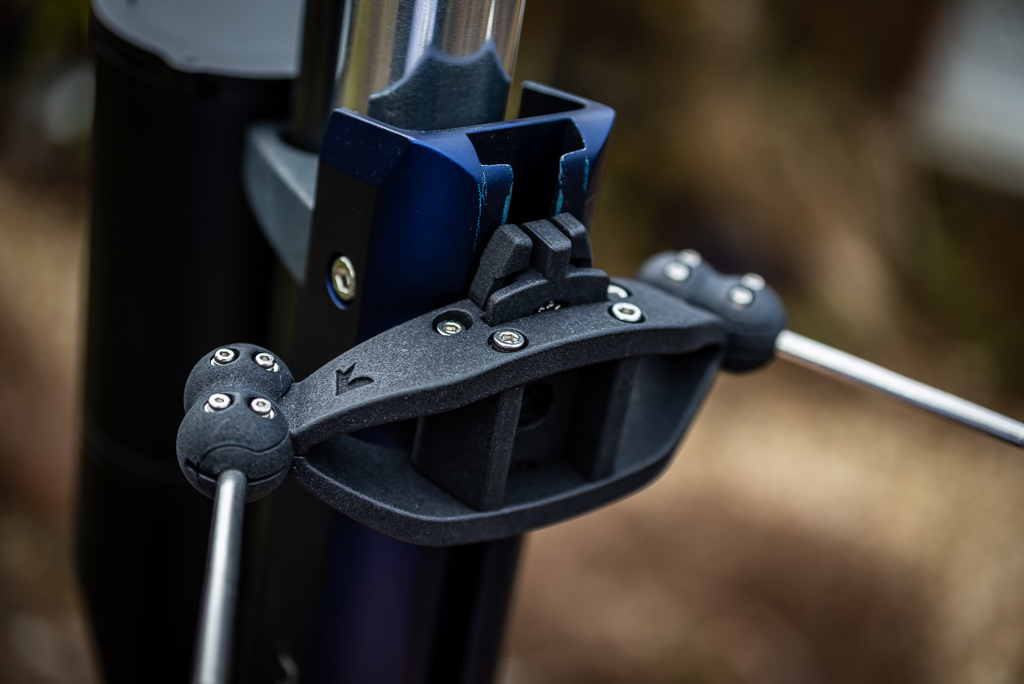

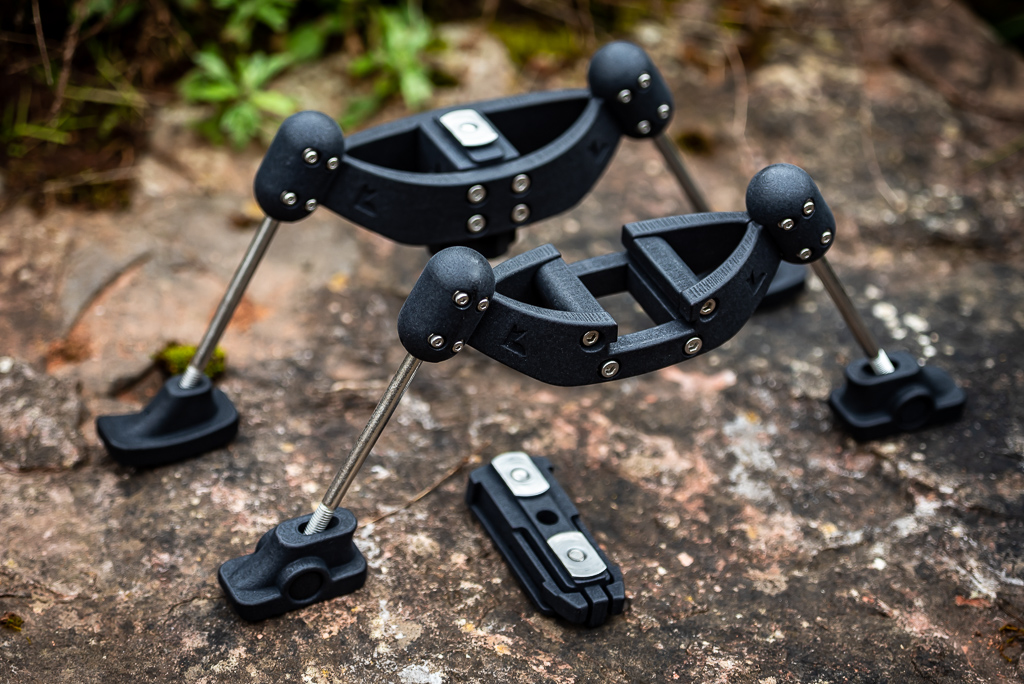

- Quick release: A separate part connects to the stock permanently, either with T-nuts (for UIT accessory rails) or with built-in M5 nuts (for direct mounting on wooden stocks). The bipod slides onto this base part and clicks into its place.

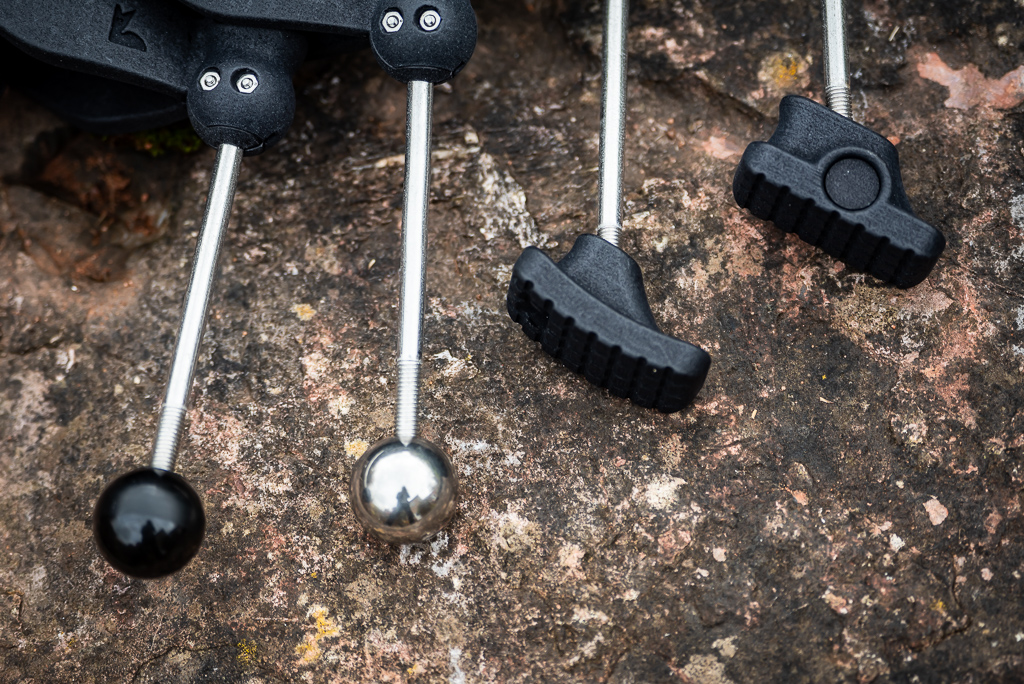

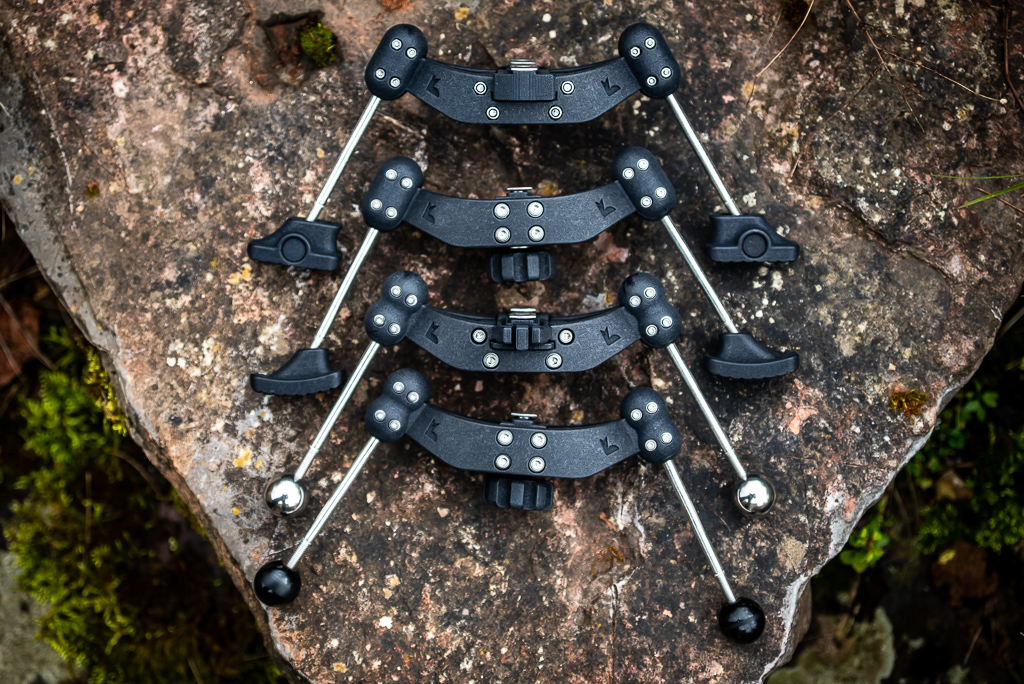

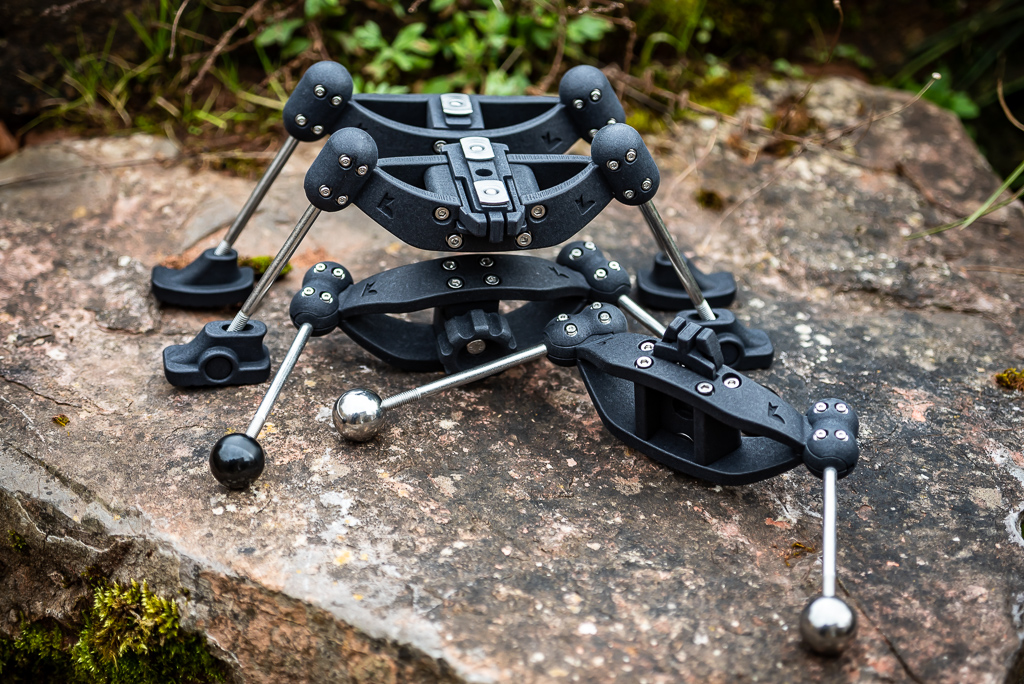

Both variations can have these 4 leg types:
- Black Plastic Ball: A simple 20mm black plastic ball with brass threaded insert
- Stainless Steel Ball: Solid stainless steel 20mm bearing ball, looks nice shiny and lowers the centre of gravity

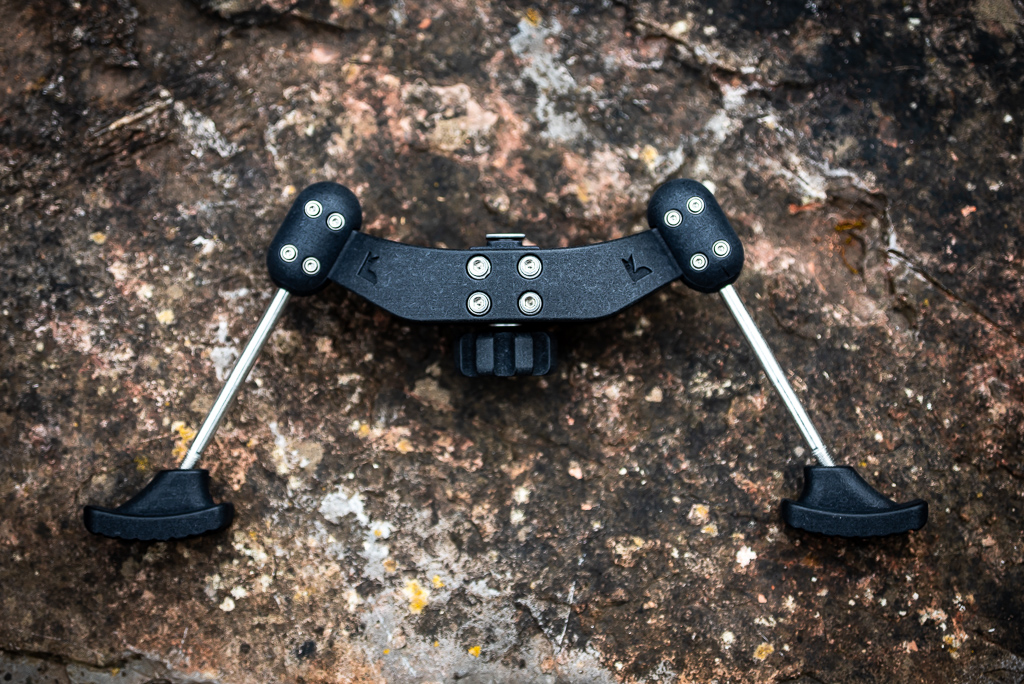

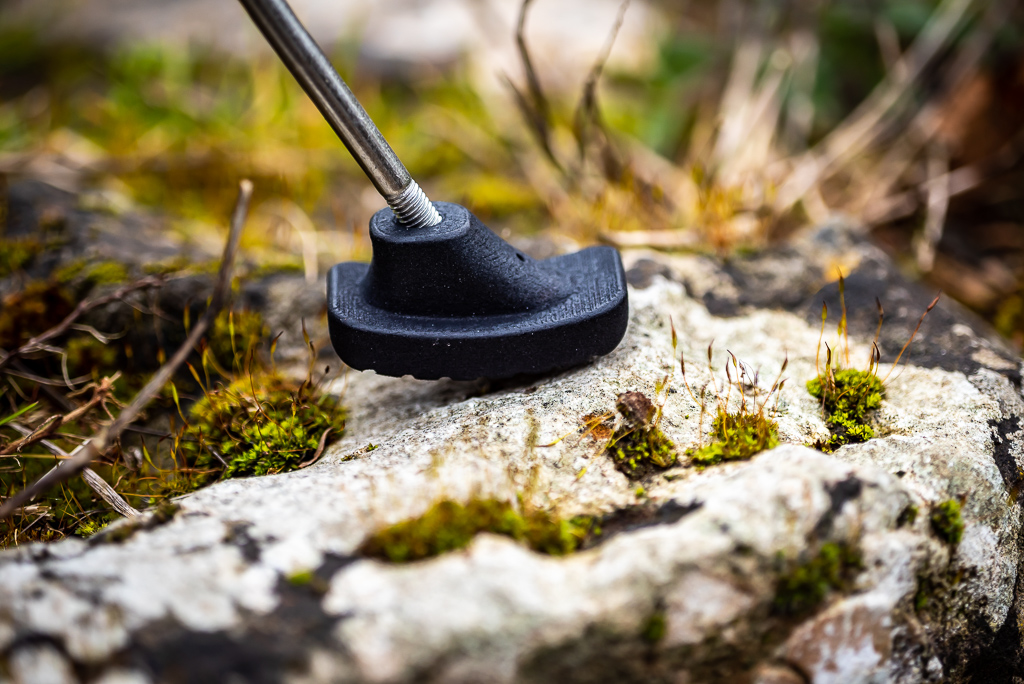

- FT Caterpillar Boot: Big (25x50mm) curved surface with grooves, a solid support on all terrain, this is a real workhorse and I recommend this for FT

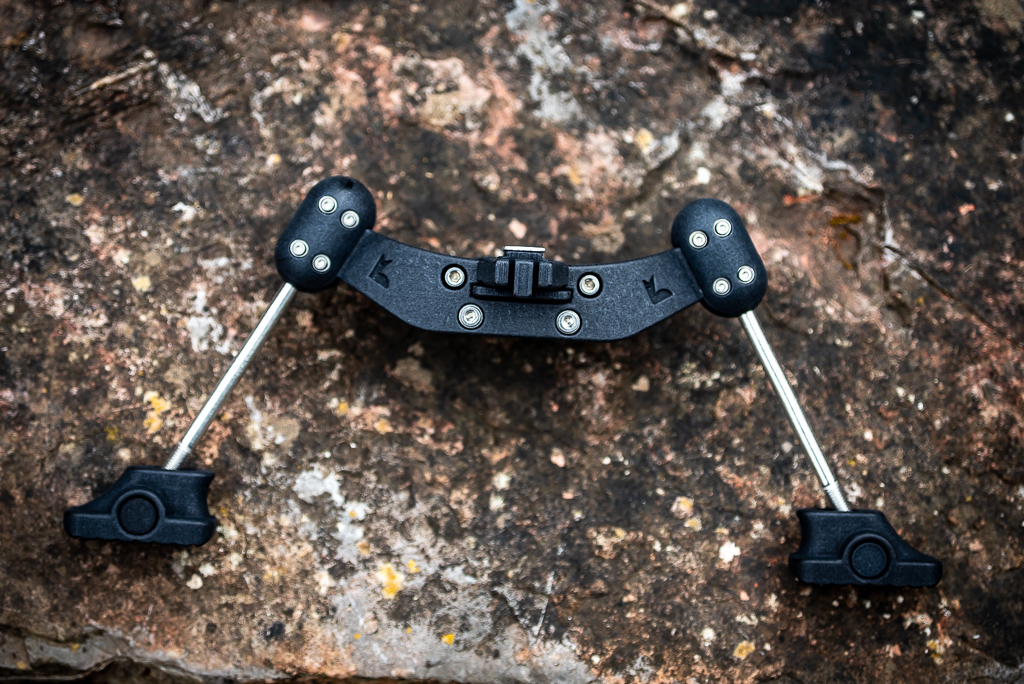

- Self-Levelling Flat: 20x40mm flat feet that is self-levelling within ±10°, this is more delicate so it is recommended for mostly dry conditions
Only logged in customers who have purchased this product may leave a review.
