Additional information
| Weight | 55 g |
|---|---|
| Dimensions | 105 × 53 × 13 mm |
Sold

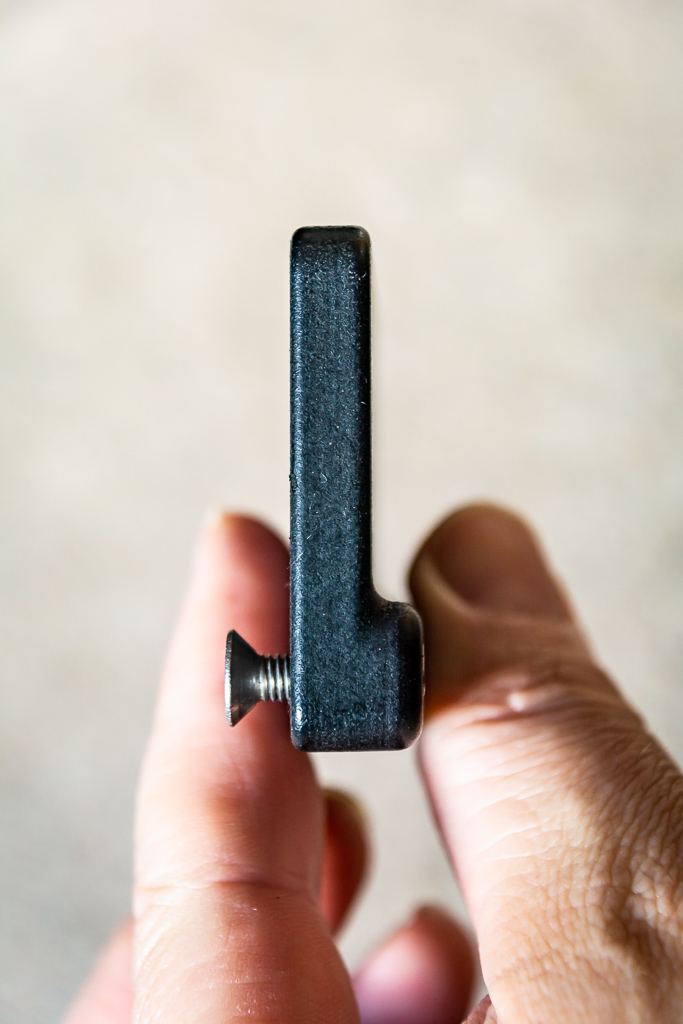

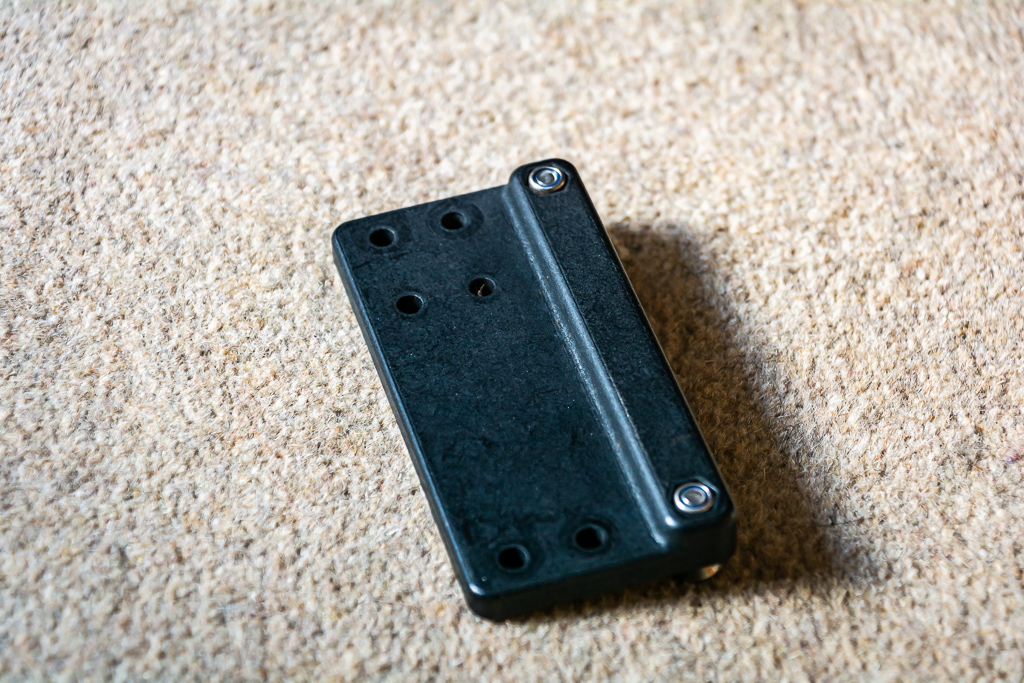

Hook Offset Plate 20/35mm
Original price was: £29.99.£19.99Current price is: £19.99.
Adapter plate for mounting a hook with a certain offset.
Connection to hook: M5 Nyloc nuts, CTC 90mm
Connection to rifle: M5 countersunk holes, CTC 20mm, 70mm and alrogether 90mm
Offset: 20mm or 35mm.
Thick laser sintered Nylon plate, very massive. Polished black surface.
Out of stock
Only logged in customers who have purchased this product may leave a review.
Related Products
Save up to £5.00!
Price range: £14.99 through £24.99
Select options
This product has multiple variants. The options may be chosen on the product page
EasyPin Extra Pointer
Adjustable angle scope pointer (10°–90° to the scope tube, two positions). Fits 1″ / 30mm / 34mm / 36mm / 40mm scope tubes, and needs only 10 mm space on the tube. The top is 11.5 mm above the tube in vertical pin position..
For parallax wheels and click turrets.
With stainless steel screws and steel pin. If you need a longer or shaped pin, you can simply replace the original pin with any <1mm wire.
New updated ring design is available. The same function but a better looking ring, scope tube protection, bolt/nut secured against falling out.
The 30/34mm new design pointers are available in a ‘Target’ version i.e. with two pointers, one for the elevation turret and another on on the side for the windage turret.
For more features and combinations with other scope ring features see Every Possible (And Impossible) Scope Ring Combination.
EagleEye Parallax Magnifier
Magnifier for the parallax wheel, fully adjustable, with a lightweight and unbreakable Fresnel lens. Visible lens size 12.5×38.5 mm. Fits to all major scopes, can be folded up for safe carrying.
Please understand that it can happen that you’ll need a stronger or weaker lens (depends on your eyesight), the frame can hold any flat lens up to 0.8 mm thickness or an acrylic lens that is cut to the right shape.
If you have got a rubber ‘scope enhancer’, you can choose the special ‘Enhancer’ version that is a flexible half cylinder and can be mounted on the rubber enhancer by two massive cable ties.
Check out my new clicks magnifier, too: EagleEye Clicks Magnifier.
New updated ring design: The same function but a much wider adjustment range (40-47mm) and a better looking ring, ocular tube protection, bolt/nut secured against falling out.
WFTF Target Checker
The official WFTF Target Checker (designed by Brian Samson, public domain, printed under the Creative Commons CC0 licence).
“The device is designed to give an equivalent impact force to an airgun pellet hitting the paddle of a target at 5.5 ft/lbs energy (7 Joules). To mimic the effect of a target being shot at with a WFTF legal air rifle at 55 yards.”
Fully assembled and ready to use. High quality 3D-printed PLA/PHA in black and orange colours, stainless steel bolts/nuts.
MK2 2018– Brian’s original design
MK3 2019 – Smaller improvements like easily adjustable depth gauge, wrist strap, killzone diameter checkers etc., see below for more details.
MK4 2020 – Further improvements to resolve all issues of the original design. Re-designed internal parts, spring tension can be fine-tuned with a hex key, free travel length of the probe doubled.
MK4.1 2023 – Further improvements, small modifications, safer trigger etc.
MK4.2 2024 – Morer improvements, re-designed trigger, spring guide etc.
Available colours: Dutch Orange, Ultra Marine Blue, Traffic Red, Leaf Green, Intense Green, Fluorescent Pink, Signal Yellow, Shining Silver and Sky Blue, all with black sides.
Detailed instructions manual (by Scott Hull): download PDF
Sold
Original price was: £14.99.£9.99Current price is: £9.99.
Select options
This product has multiple variants. The options may be chosen on the product page
EasyPin Pointer
Simple and lightweight scope pointer. Fits to all 1″ / 30 mm / 34 mm scope tubes, and needs only 10×10 mm space in width and length as seen on the picture.
For 36mm and 40mm tube diameters see EasyPin Extra
For click turrets with a custom made cap, or for sidewheels. With stainless steel screws and steel pin. If you need a longer or shaped pin, you can simply replace the original pin with any <1mm wire. Find out which pointer suits you best: Scope Pointer Comparison Table
NEW: there is an advanced version of this pointer available, too, with adjustable pin angle and also for 36mm and 40mm scope tubes: EasyPin Extra Scope Pointer
Save up to £15.00!
Price range: £14.99 through £43.99
Select options
This product has multiple variants. The options may be chosen on the product page
SmartPin Adjustable Pointer
Precisely adjustable pointer for reading the parallax wheels in different conditions. For temperature shifting scopes, light/dark environments, old eyes etc.
Fits 1″ / 30mm / 34mm / 36mm / 40mm scope tubes or 42-43 mm ocular tubes for shark fin wheels – and needs only 10×10 mm space in width and length as seen on the picture. With stainless steel screws and steel pins.
This pointer can be adjusted within 20 mm or 30 mm with a thumb screw, allowing precise and repeatable positioning of the pointer. The scale has 2 mm divisions. No need to fix and release, the pin has got some friction so it always stays where you set it with the screw, no accidental move (by your shooting jacket or rifle case).
The adjustable pointer comes with an additional pin 3 mm under the other one, for combining the effects (e.g. use the screw adjustment of the pointer to compensate scope temp shift and use the two pins for light and dark targets). If you need a longer or shaped pin, you can simply replace the original steel pins with any <1mm wire or paper clip.
New updated ring design is available. The same function but a better looking ring, scope tube protection, bolt/nut secured against falling out.
For combinations with other scope ring features, see Every Possible (And Impossible) Scope Ring Combination.
Save up to £10.00!
Price range: £69.90 through £84.90
Select options
This product has multiple variants. The options may be chosen on the product page
FolloWing MK5 / SteadyWing MK5 Hook Extensions
NEW DESIGN: The MK5 version of the well known FolloWing and SteadyWing systems.
These parts are actually the very same as the upper wings of the Scorpion MK5 FT Hook, and have a massive adapter that connects them to the original hook.
- High quality laser sintered Nylon, polished and dyed ‘carbon black’ finish, stainless steel bolts and nuts.
- Lightweight structure with a lot of adjustments
- All adjustments are available even in shooting position
- The links can be bent and twisted, too
- Engraved marks for all adjustments – you can record and reproduce your settings any time
- Rounded link elements – gives a smoother fit when the links are twisted
- Fully re-designed system, with a massive cogs style connection instead of the weak link
- True L/H version fully mirrored in every function, and now available in all variations
- Please contact me with any questions, I can design any custom part or modify the existing ones, according to your needs.
Adapters in stock:
- AirArms FTP-900
- AirArms XTi-50
- Anschütz 4765
- MEC Free Position
- Universal Converter for all old FW/SW/TW adapters
Adapters available on backorder:
If you can’t wait a couple of weeks for the backorder, you may consider ordering the hook extension with the ‘Universal Converter’ and add an old style FolloWing adapter to the cart.
- AirArms EV-2
- Anschütz Precise I
- Anschütz ONE
- Feinwerkbau 603 / P70 / 700 / 800
- Gehmann 809
- Grünig&Elmiger hooks
- MEC Contact-III
- Steyr LG-100/110
- System Gemini hook
- TEC-HRO Fusion hook
- Generic adapter A (standard) / B (reversed)
All versions come with appropriate stainless steel bolts and nuts and are ready to connect to your hook.
Scorpion Base Plates
Custom base plates and adapters for the Scorpion Field Target Hook, to fit it to different rifle stocks
Other spare parts are available here: Scorpion FT Hook Extras.
FlexiPoint Spare Blades
These items are only spare parts for my trigger system (in black colour only), and allow you to try different surfaces and shapes to make sure, which one fits you the best in practice.
If you’d like to have a complete trigger, please click here: FlexiPoint offset trigger.
For detailed information please click on the tabs below:
Ball trigger with a 5 and an 8 mm ball on the two ends. Ball triggers are fine because you’ll always have the same trigger weight, but it’s a severe problem that you can’t feel the direction of the pull. If you ask me, you should rather choose a round trigger instead from my standard blades, it’s much better. This Ball trigger is available in Offset version, too.
Small horizontal trigger with pyramids on both sides (fine and coarse). Similar to the ball but you can feel the direction of the pull.
These blades have a big round surface that fits to the fingertip. There are four different surfaces, they look quite similar but each version gives a totally different feel on the trigger, so you can choose the one that fits to your shooting style the best.
- ‘Centre’ gives a d=2 mm sharp point in the middle, giving a very precise feedback of the actual pull weight, the edge gives only a small hint of the right pull direction.
- ‘Deep’ follows the shape of the fingertip, giving a comfortable and evenly distributed contact on the whole surface.
- ‘Edge’ is for those who are after the right pull direction, combined with a comfortable feeling of the deeper middle surface.
- ‘Flat’ feels like a flat surface, simple and precise.
Traditional straight and curved blades, 8mm wide, 20mm high surface with vertical grooves, the middle height is marked with a horizontal groove.
